Waypoint mission with gimbal roll
When entering curve in autonomous waypoint flight, is it possible to have gimbal roll done automatically (just like it was a plane)?
I have a curve set between the points and I want gimbal to roll just like in standard drone gimbal FPV mode.
Comments
7 comments
Wouldn't changing the gimbal mode to FPV do that for you?
wow, that would be great! thanks for the tip. I'm considering buying Dronelink thus the question. Litchi doesn't have it for sure.
Where do you find this mode ? I can't see this "Gimbal mode" in my waypoints map. Thanks.

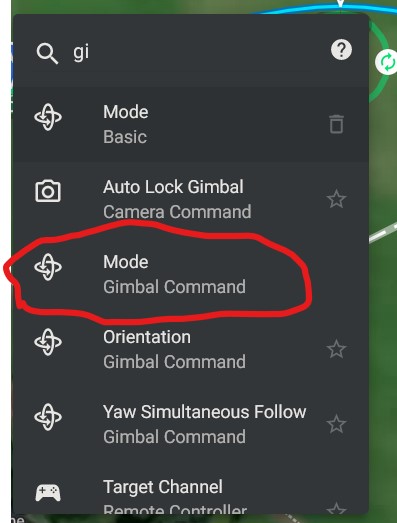

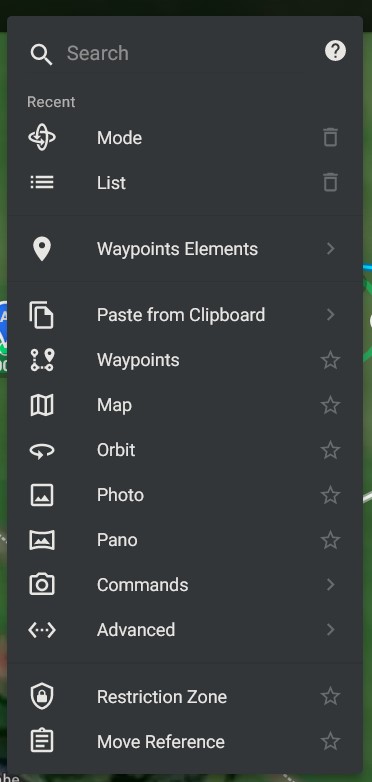

You need to be in expert mode, right click on the first waypoint, in the search box that appears at the top of the list of options start typing gimbal

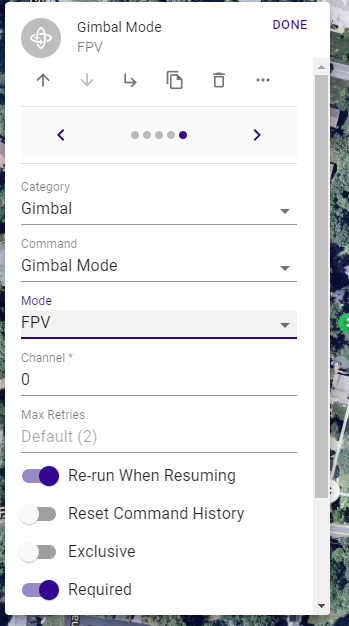

Then select Mode-gimbal command
Thank you Martin !
Does the order in which the components appear matter ?

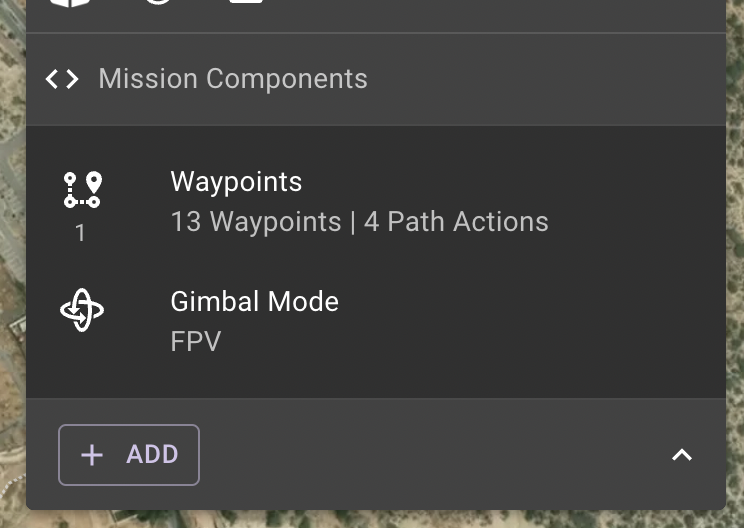

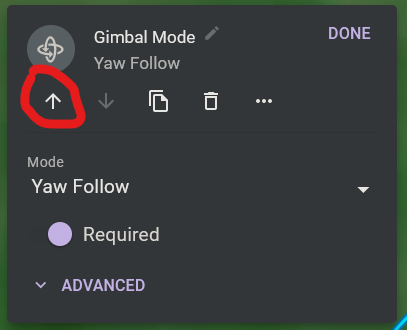

Yeah the order in which components are listed is the order they are performed, so to get the gimbal command to come before waypoints, select the command and in it's setting panel, tap the up arrow button
Thank you Martin.
I tried it this afternoon but I didn't see any difference.
If you have the time, can you check my plan ? :)
https://app.dronelink.com/jpdrone/maroc--taghazout/plan/MVBbzIh7ojgAf6iOlSqU/pA5b2xiXdd5jQOvrO69D
Thank you.
