Grid

Morning can someone advise me whether you can make the grids smaller. The area I want to cover is small and the grids are too large. TIA

4 comments

Martin Reading Dronelink Expert
- November 22, 2023 11:59
The size of grid is going to be governed by:
The altitude you are flying at
The front and side overlap set in the mission

0
Dapper Don
- November 22, 2023 12:24
Thanks for you response are you able to give me advice on how to capture my small roof which is 10m x 10m I wish to use the grid feature to capture detailed images of my roof. TIA

0
Barry Houldsworth Dronelink Expert
- November 22, 2023 16:25

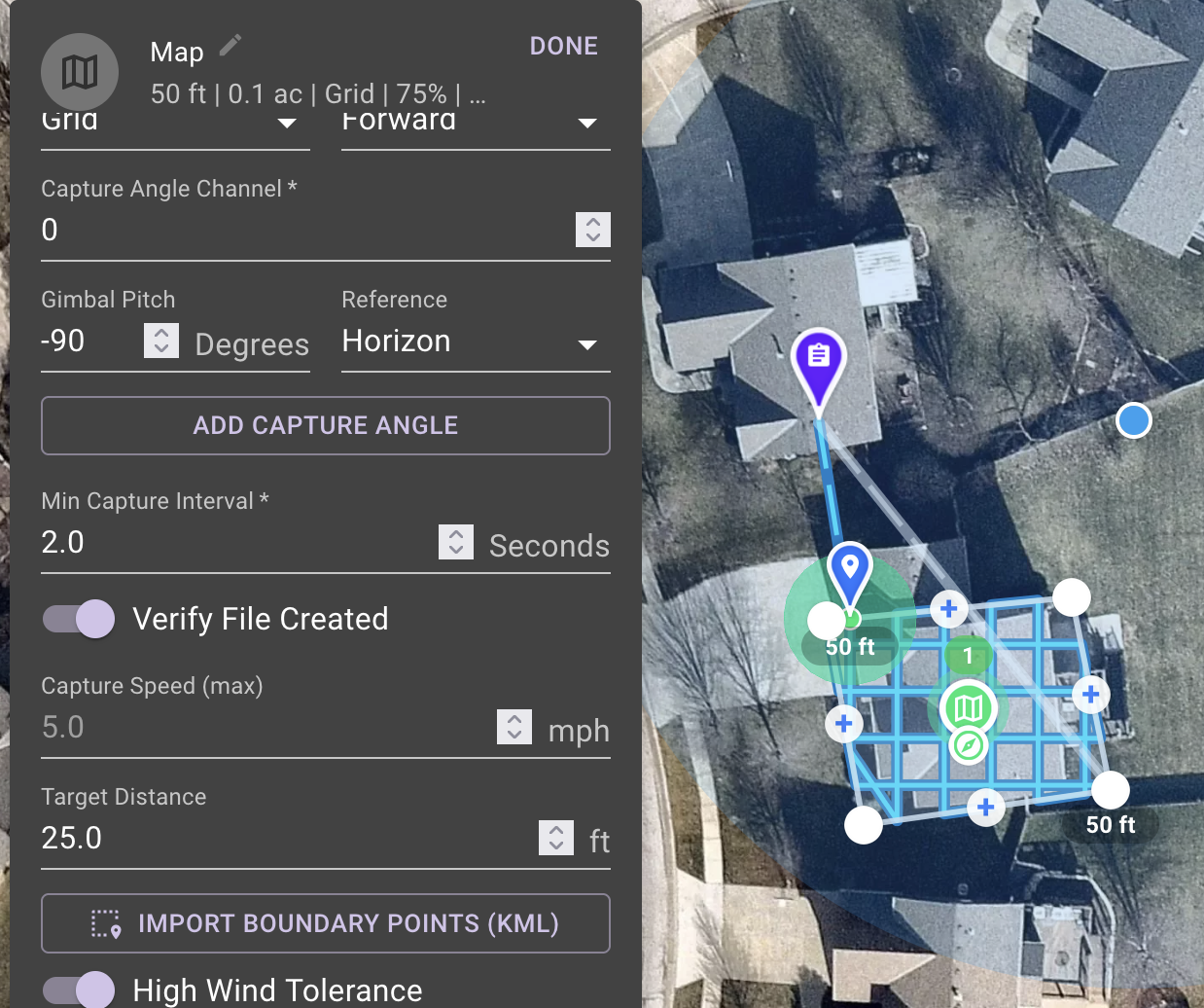

1. Create a grid around the roof - give yourself at least 25ft distance from the highest point on the roof to be safe. e.g. if the roof is 40ft high, set the altitude to 65ft
2. Switch to expert mode to give more options, then scroll down and set the target distance to the distance from the flight altitude to the roof - in this case 25ft. That will recalculate the overlaps based on that new target distance and automatically add new grid lines
0
Mike (Arizona Wyldwest) Dronelink Expert
- November 22, 2023 18:07
May be asking about the actual size which if so you need to unlock the Orange lock icon on right side of screen. Then drag any of the boundary markers like A, B, C, D and so on to decrease or increase the overall size of the map. Then you can set all the other parameters as Martin and Barry mentioned. If I miss understood then just disregard my silly comment. Lol….

0
