The Map mission component is used to capture data for creating orthomosaics / orthophotos / 3D models. Fly a mapping pattern that automatically captures photos within an area set by multiple boundary points. Configure settings such as drone camera, altitude, speed, image overlaps, direction, pattern, gimbal pitch and much more.
There are multiple mapping plan levels (Basic, Advanced, and Expert). If your plan type does not support the feature you need, you will be prompted to upgrade.
This article covers some features included in Basic Mapping.
See these articles to learn more about:
- Advanced Mapping - Enable Grid Pattern, Oblique Gimbal Pitch
- Expert Mapping - Enable Terrain Follow, Control Capture Speed, Drone Heading, Photo Type and more

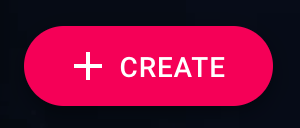

Step 1 - Add a Map from the 'Create Menu'
Adding a map from the Create Menu places the map mission template at a location you select.

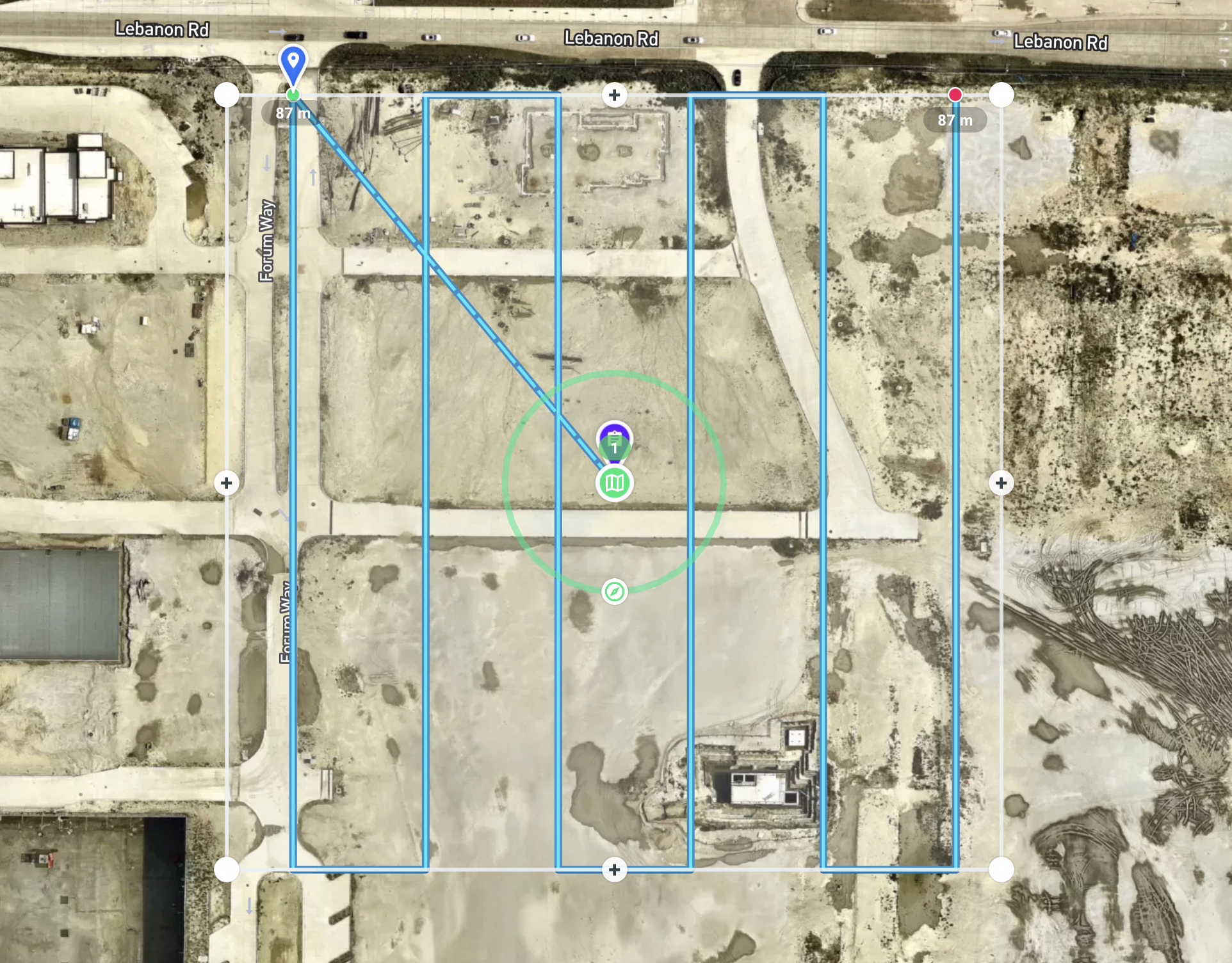

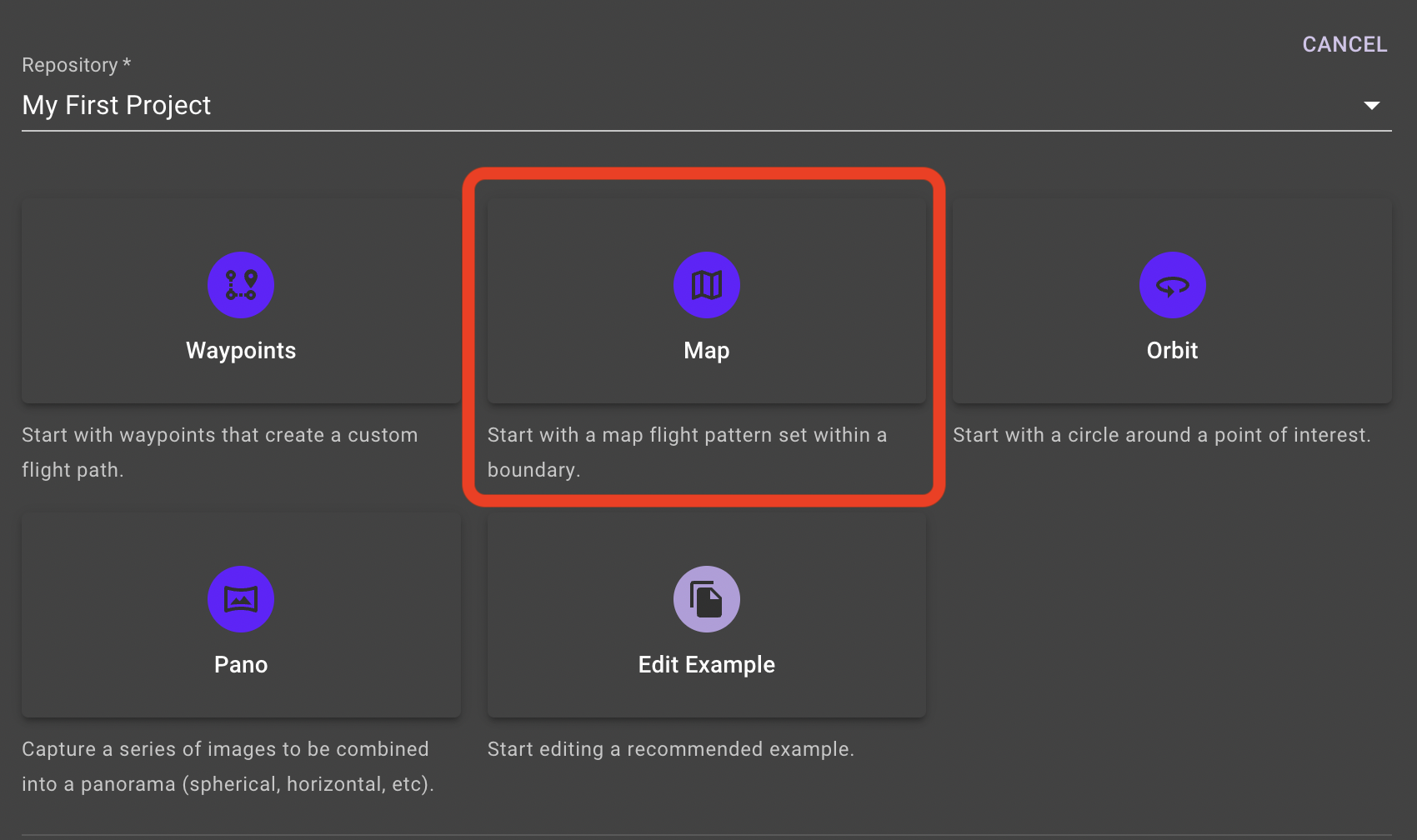

After selecting Map, Select a location to place it.
The default settings when adding a Map are:
- Camera: Mini 2
- Size: 4.6ha (11.5ac)
- Altitude: 87m (285ft)
- Speed: 32 km/h (20mph)
- Front Overlap: 75%
- Side Overlap: 70%
Step 1.1 - Add a Map from the 'Add Menu'

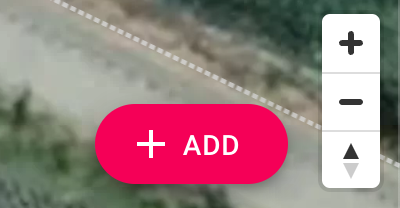

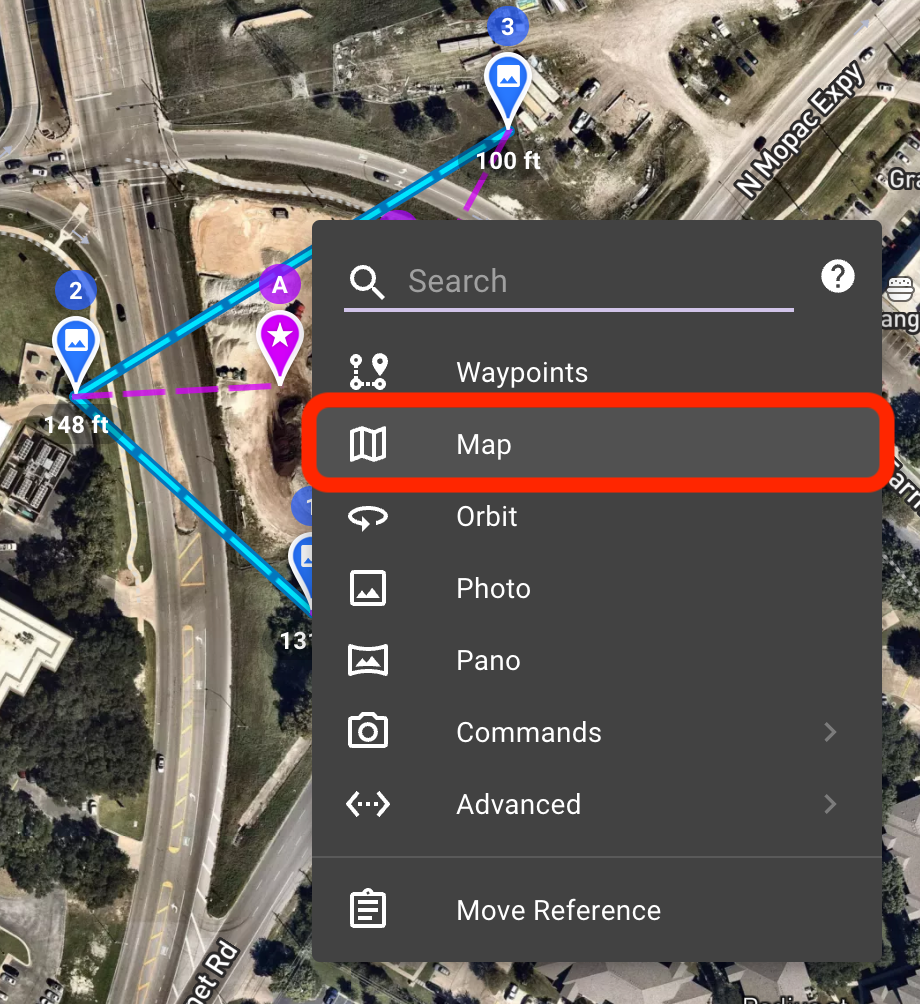

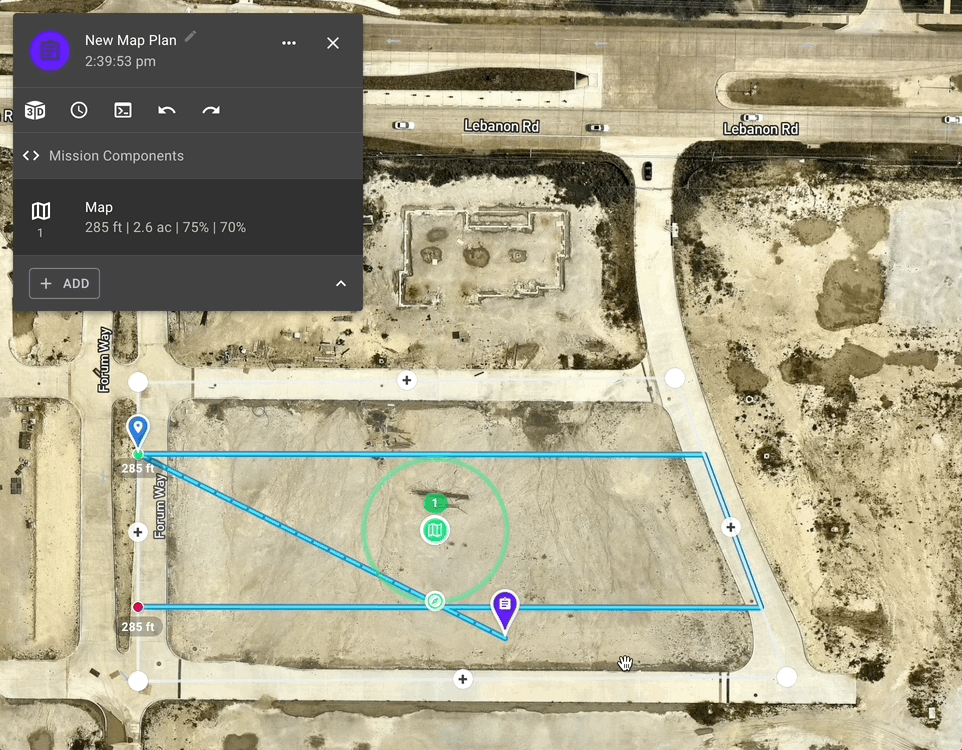

Add a Map from the Add Menu in an existing mission plan.
Step 2 - Set the Map Boundary Area

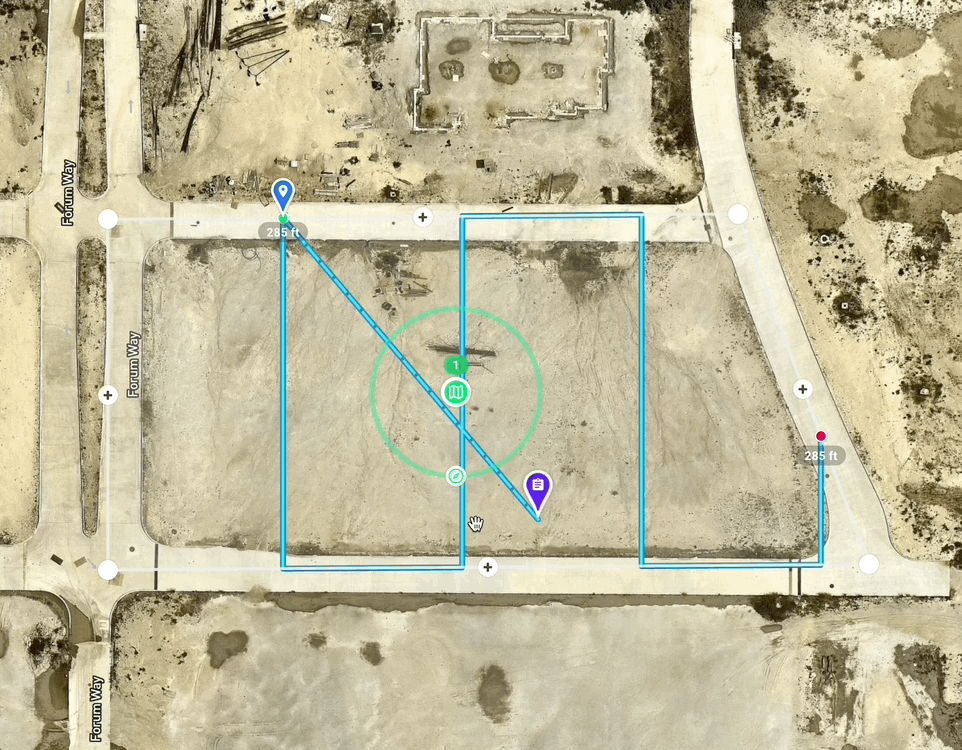

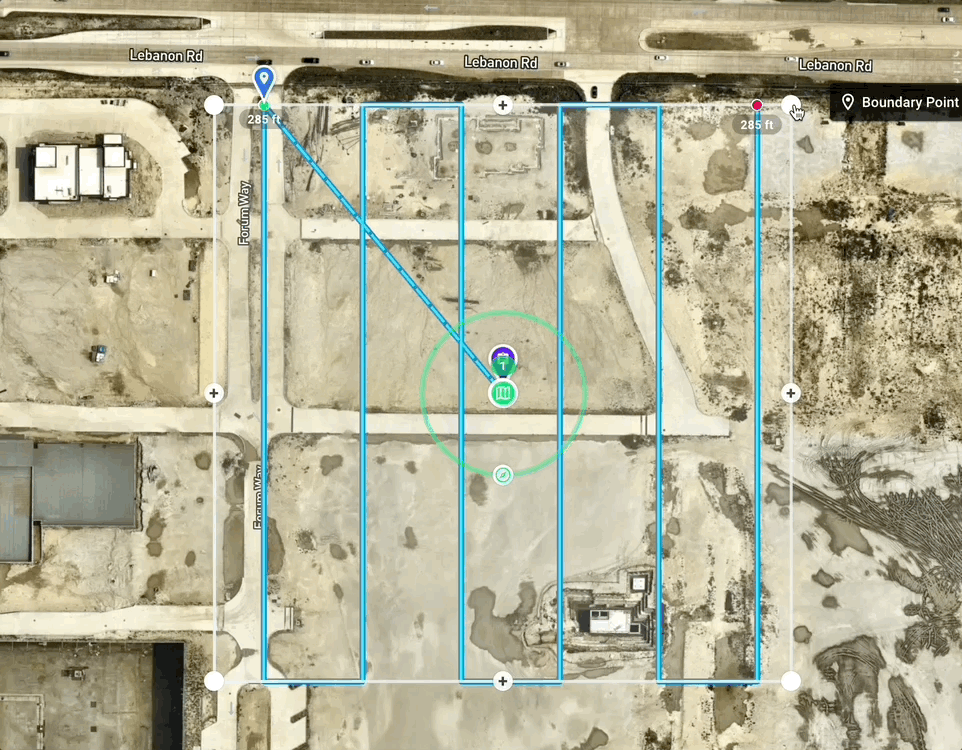

Move the existing boundary points, or add new ones to define the mapping area.
Click the + to add new boundary points.
Step 3 - Change Mapping Direction
Adjust the map direction by dragging the Rotate Flight Direction control.
Step 4 - Open Settings to Set Camera and Altitude

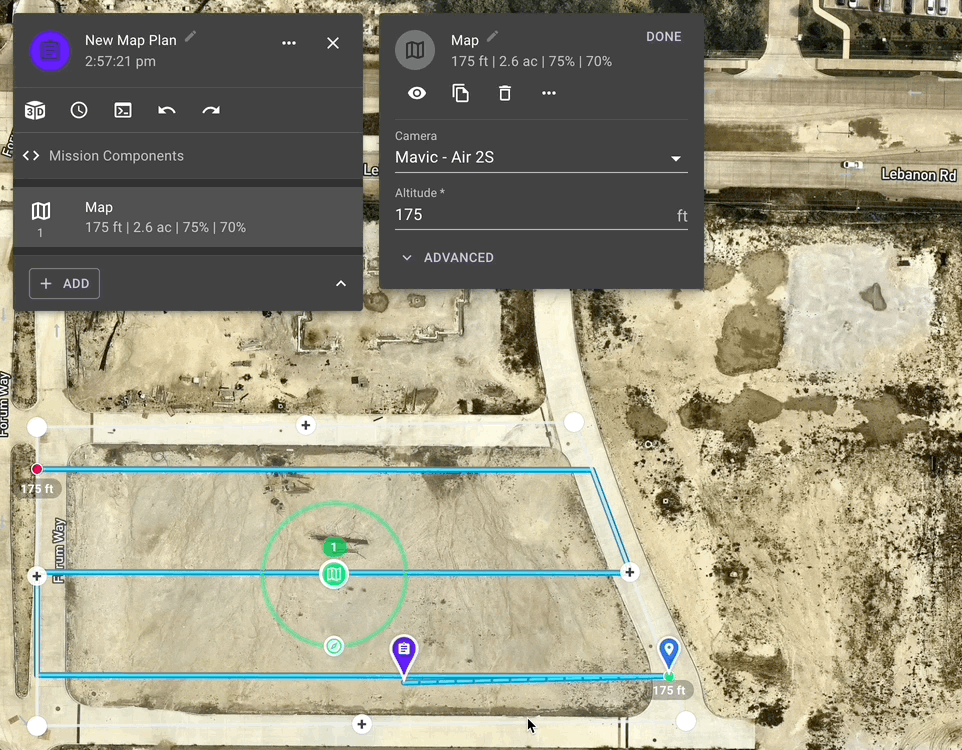

Open the Map Settings by selecting the map mission component on the map or Mission Component List. Set the drone camera and altitude. The drone camera is important to ensure your ground sample distance and overlaps are correct.
Is there a minimum map altitude?
No. Dronelink does not set a minimum altitude for a map, and the mission planner accepts low values.
By default, altitude is relative to the takeoff location. If the ground under the map is higher than the takeoff location, the drone is closer to the ground than the altitude value shows.
With the gimbal straight down and an altitude below 5 ft (1.5 m), the planner calculates Ground Sample Distance and photo spacing as if the altitude is 5 ft. At these altitudes, the values in the planner are not correct.
WARNING: Make sure that the altitude keeps the drone clear of the ground, trees, buildings and other obstacles. A low altitude can cause the drone to hit an obstacle.
Step 5 - Change Map Start Location

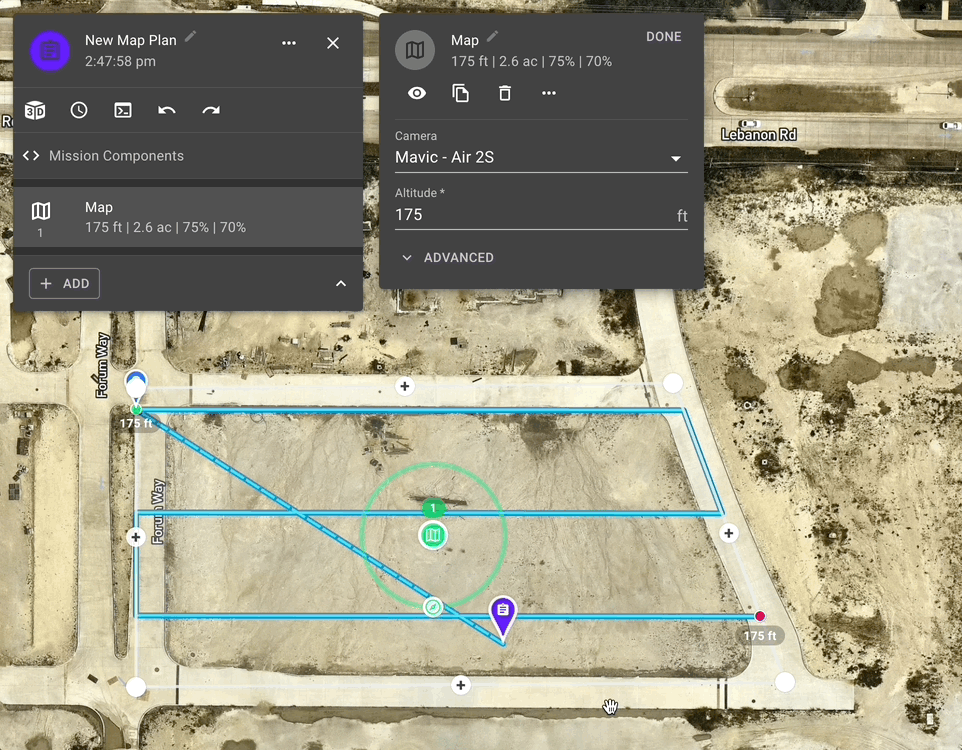

Drag the Map Start pin to the location you want the mapping mission to start.
Step 6 - Change Overlaps and Flight Speed
Expand the Advanced Settings to change the front and side overlap, and flight speed.
In Basic Mapping plans, it is also possible to change the Capture Mode from Photo to Video, or None.
Advanced Mapping plans are required to change pattern and gimbal pitch. Learn More.
Expert Mapping plans are required to change Photo Type, Drone Heading and Other Expert Mode Settings. Learn More.
