Problems with gimbal tilt

February 28, 2022 10:45
6 comments

Good morning, I have had a problem with the gimbal and the Mavic Mini. I had made a plan with a 40º gimbal tilt.
The drone goes to the starting point but when the gimbal is going to turn it gives problems.

I don't know if I can share the plan so you can check it.

Thank you.

Comments

6 comments

Jim McAndrew Dronelink Staff
- February 28, 2022 12:44
Please share your mission plan.

0
Mike (Arizona Wyldwest) Dronelink Expert
- Edited February 28, 2022 16:03
It may seem simple but did you place a negative value “ - “ before the 40°. I assume you mean tilting down since it won’t go up 40°

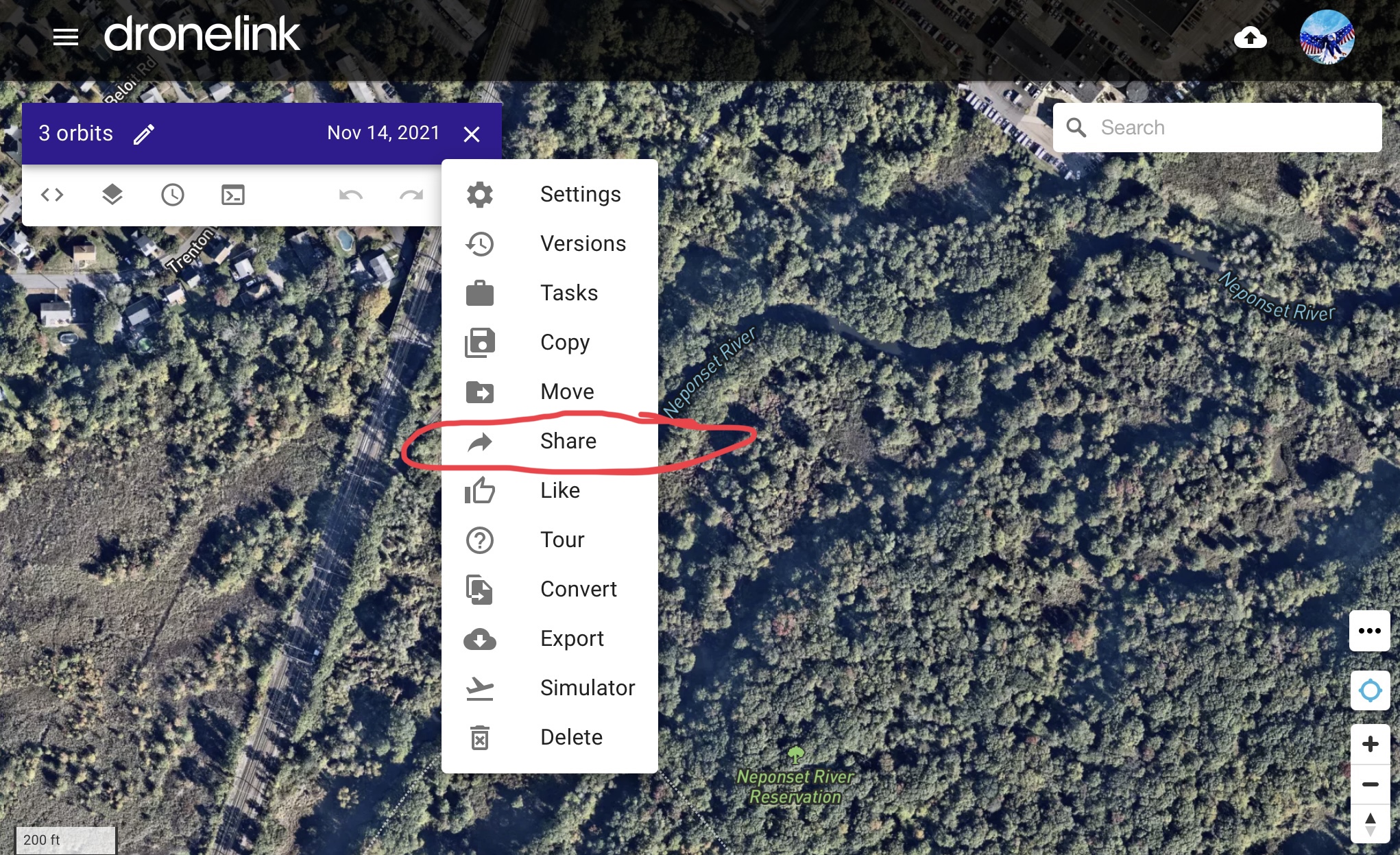

One way to share the plan. Open plan, click on the three dots, share, then new viewer.

0
Edificación y Obra Civil - Plasencia
- February 28, 2022 16:52
https://app.dronelink.com/javier-salcedo-hern-ndez/fotogrametria-palacio-congresos/plan/zfMKAZqLO34JBedh8RXF/cgWiBPfU6OdnyrowyAyT

thanks

0
Mike (Arizona Wyldwest) Dronelink Expert
- Edited February 28, 2022 18:09
I do very little mapping. Someone who runs a lot of mapping may be able to help more. The only thing I noticed is you have two capture angles setting gimbal at -45°. Since since Minis don’t have multiple cameras/ gimbals, it’s not able to perform a second one. Not sure if the second one is causing the issue though. When I removed the second gimbal setting it went from 206 photos to 103 taken since it doesn’t have a second camera for captures. Again, not sure that’s why.

0
Jim McAndrew Dronelink Staff
- March 01, 2022 00:46
Not sure if the second one is causing the issue though.

That is exactly the issue.

0
Mike (Arizona Wyldwest) Dronelink Expert
- March 01, 2022 19:14
🤙🏼 Sometimes I can get it right. Lol….

0
