mavic 3 classic
I have successfully created waypoints for the DJI Mavic 3 Classic using Dronelink.
However, I would like to ask if it is also possible to create a mapping mission. Whenever I try, I always encounter an error during execution.
Could you please advise if mapping is supported for the Mavic 3 Classic, and if so, how I can resolve this issue?
Comments
7 comments
Yes, Any drone which has onboard waypoints will work and the main reason for the ability of exporting a DJI KMZ was for mapping. What error are you getting. Screenshot or more information is needed.
https://support.dronelink.com/hc/en-us/articles/4410621290387-Onboard-DJI-Waypoint-Missions-Convert-and-Export-to-KMZ
Hi Mike,
I have successfully created waypoints, but failed in mapping.

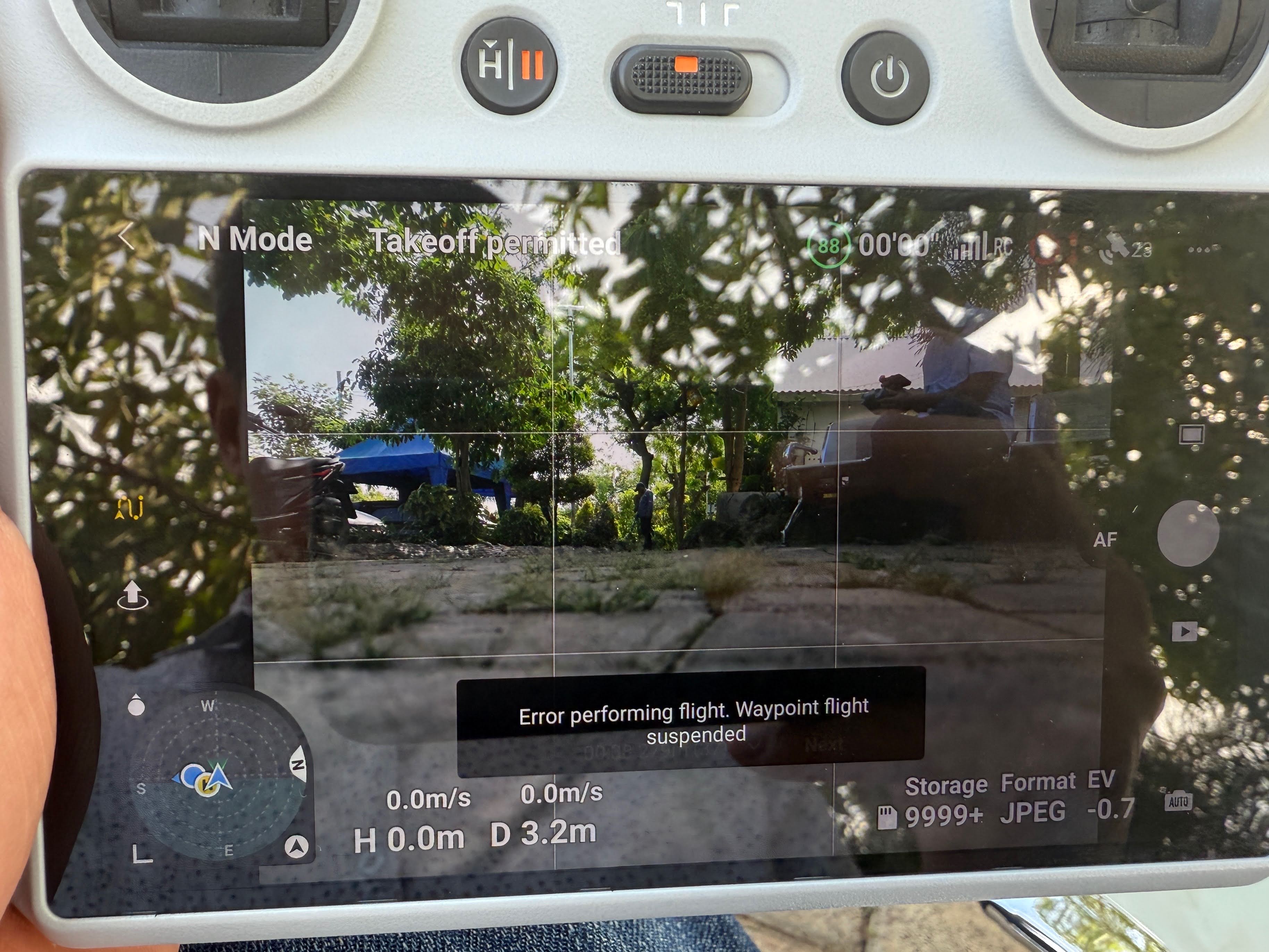

here is the error message:
Can you share your mission plan?
This is my original map:
https://app.dronelink.com/singgih-halim/my-first-project/plan/cmRH5QBdDiyHuot6xdbm/cXpsoRCEiZ17M7Qc2KZm
This is my DJI map:
https://app.dronelink.com/singgih-halim/my-first-project/plan/xue1lVFaNKAHKhncHtBh/PqeBA9hNgJDXAW5jbl3J
Please try a smaller area or increase the spacing between the waypoints.
I tried your plan and got the same error. I did a close look at the original DL plan you shared and the way it’s set up it criss crosses back and forth and has extremely sharp turns. With DL it may not matter but DJI Waypoints uses curved pathing only and I think this may be why it won’t load. The one which failed has very sharp “V” shaped like turns on at least three turns which if you look at it you will see what I mean.
I cleaned up your original plan just a little so it doesn’t have those and looks like a common grid pattern map. I converted it to DJI Waypoints and then exported the KMZ into the DJI app. With those sharp turns eliminated it loads and runs without issue. I’d adjust the original DL plan so it doesn’t criss cross so you don’t have those extremely sharp turns and then convert to DJI Waypoints. Then export to DJI app nd try. Also I noticed the controller is in Cine mode which may be an additional issue as it should always be in Normal “P” position same as when using DL. Give it a try and advise.
