Follow the path exactly!
Hello everyone
I have the following problem:
I want the drone to follow the path exactly, even in the curves. So that it does not turn during the flight. So directly from waypoint to waypoint without turning. Of course I have not set a POI.

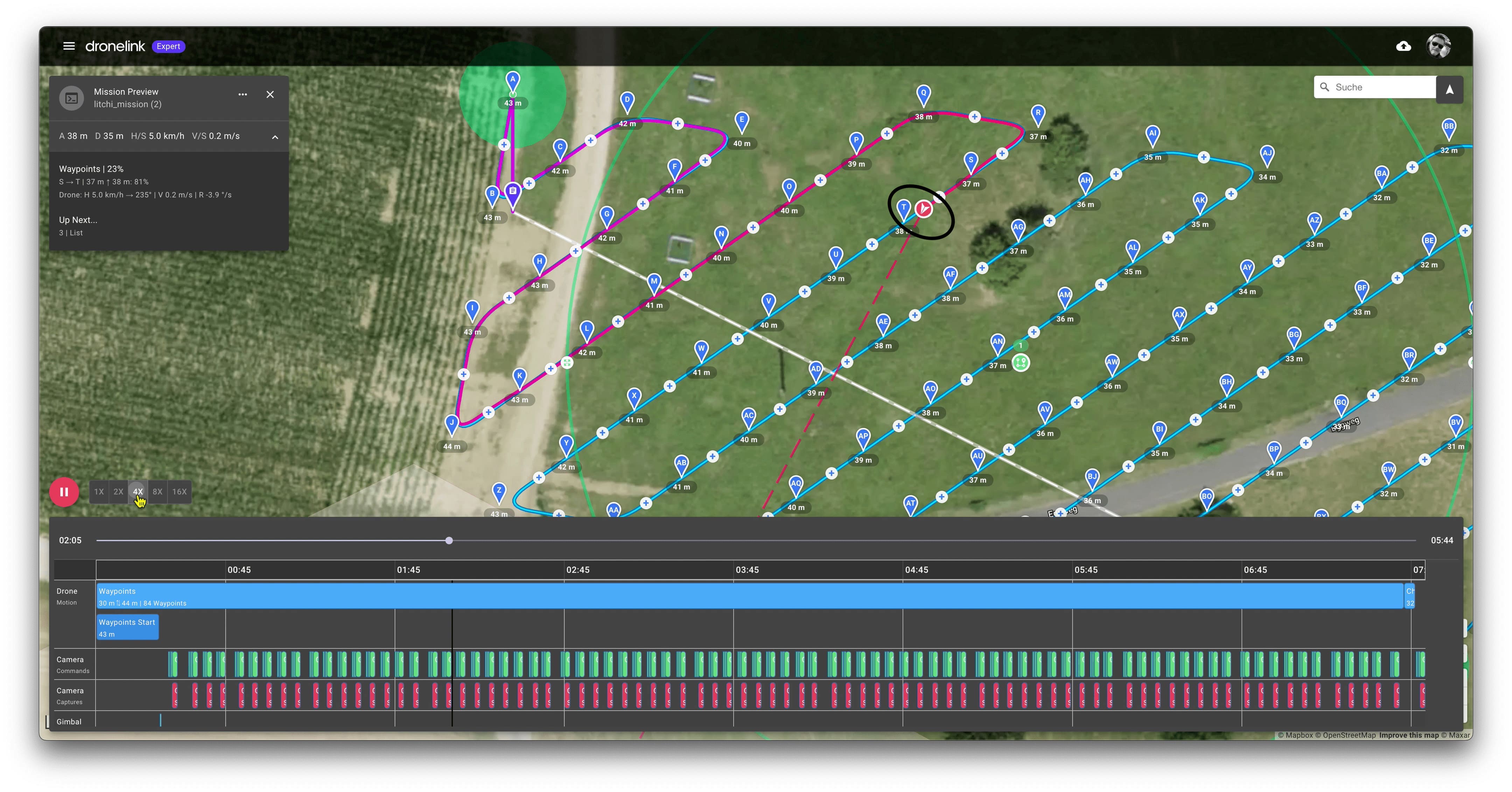

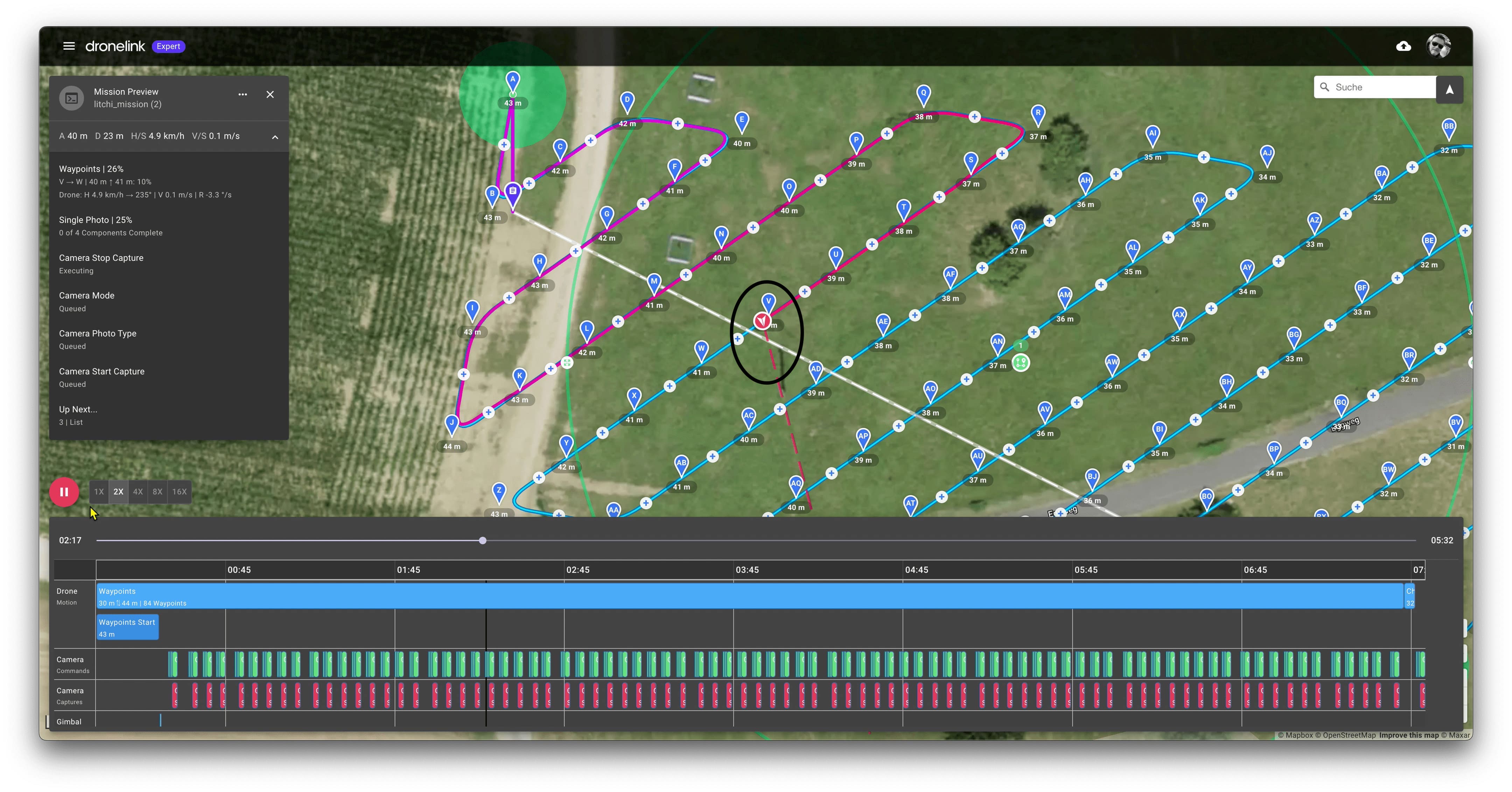

I've attached two photos, so you can see exactly what I mean.
I just can't get it exactly right.
Comments
5 comments
Here is the direct link to my mission
https://app.dronelink.com/ruggero-aebi/my-first-project/plan/UjIlzr0SWjtmBUwopsGI/nXoxarghmGC3jJuZIqwu
Hi Ruggero Aebi. Not sure if I’m understanding the question but I’ll Looks like you put a several drone headings on various waypoints set with reference to North. Remove all those and it will follow the path at 0°, basically straight forward. If this is not what you mean then please advise.
Hello Mike
No it is a photogrammetry mission with gimbal pitch -70°.
It is a csv import from Litchi.
Thats the Litchi Link:
https://flylitchi.com/hub?m=S7CRszB6Ku
Ok. That’s the issue. There will never be a one to one in regards to importing most missions from other apps like Litchi so there will need to be some adjustments. They will never work exactly the same for various reasons. If you want it to follow the path then you will need to remove those headings as I advised. I just removed all of those headings and it follows the path. The gimbal in the Litchi plan was set to -10°, not -70° so I changed that as well. It only took me about 2 minutes to fix it. It’s just the way Litchi and DL imports work. Enjoy.
