Workflow for vertical facade mapping to CAD

January 04, 2024 05:02
3 comments

Hi, Newbie here. Is anyone able to explain the workflow for producing vertical mapping images of an existing building, collating them, and exporting 2D orthographic as- built drawings for use in CAD for design and development? Is it even possible to do this?..

Comments

3 comments

Barry Houldsworth Dronelink Expert
- January 04, 2024 13:56
That's a lot! But this might get you started with at least some of it

https://youtu.be/mRb3L2emPI0?si=5L19Gi3_pyYiObck

0
Mike Langford
- January 04, 2024 21:25
Apologies! In retrospect, yes it’s a lot to ask.

Great video, and very helpful. Thankyou. I guess my main question is how to get this data into a 2D orthographic format for use in CAD for design purposes?

0
Barry Houldsworth Dronelink Expert
- January 05, 2024 03:28
Mike Langford

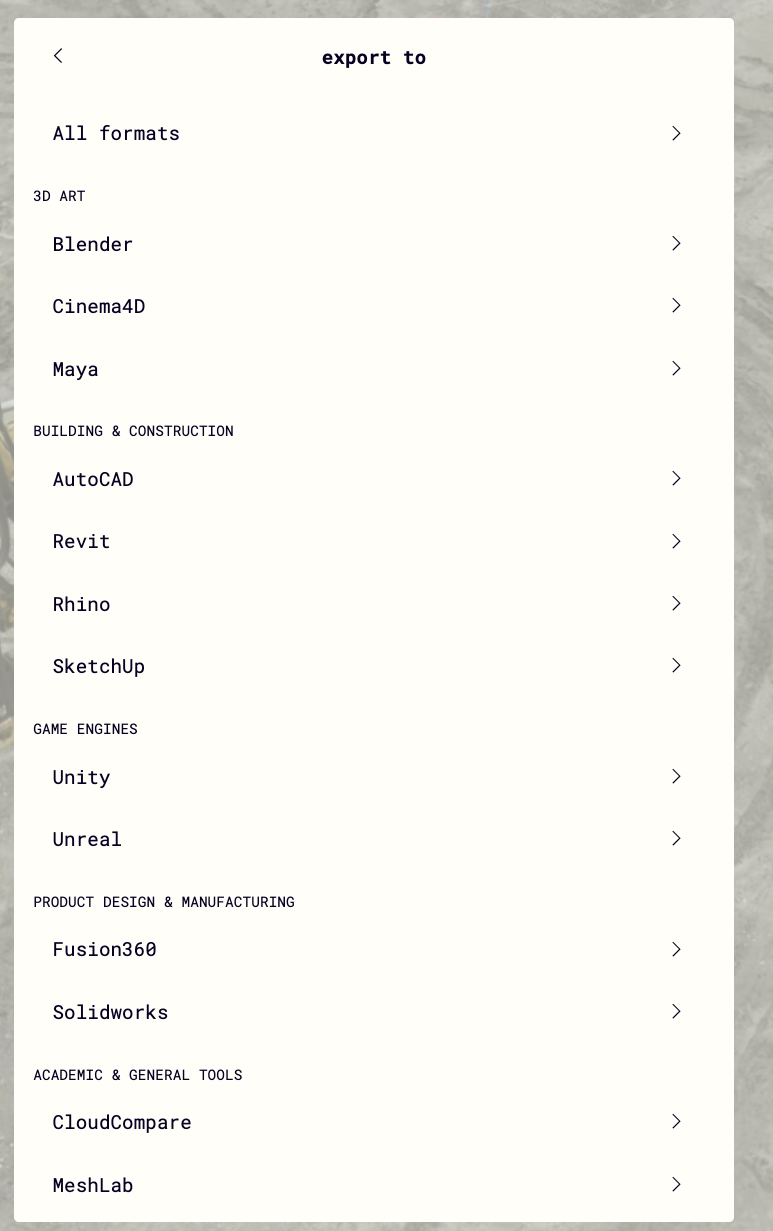

This week's five minute Friday video *might* just have what you need. It certainly has the ability to allow exports to a variety of formats as you can see below

Check out the video here: https://youtu.be/F0Xtwa3YObI

0
