Virtual drone FOV (Mission Preview camera)
In the mission preview, there is a drop down menu of cameras by drone.
Using mini 3 pro (video), I find a horizontal field of view of about 70 degrees, vertical about 37 degrees (determined from recorded videos and trigonometry).
However, the FOV (field of view) in the mission preview is very different for the mini 3 pro.
How is the FOV calculated?
For the custom FOV, there is not any option just to put the vertical and horizontal FOV. There is a lot of inputs about sensors size, image size, focal length.
What is the source of the data for those? Is it from DJI? If so, where can I find it?
Comments
2 comments

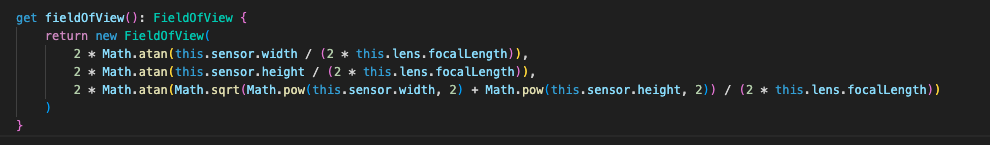

This is the FOV calculation:
If you select the Mini 3 pro, and then switch to custom, you can see the exact values we are using for the sensor and focal length. If they are incorrect, please let us know.
First line is horizontal.
Second line is vertical.
Third line is diagonal.
