3D mapping and waypoint mission

April 15, 2023 08:44
1 comment

Hi,

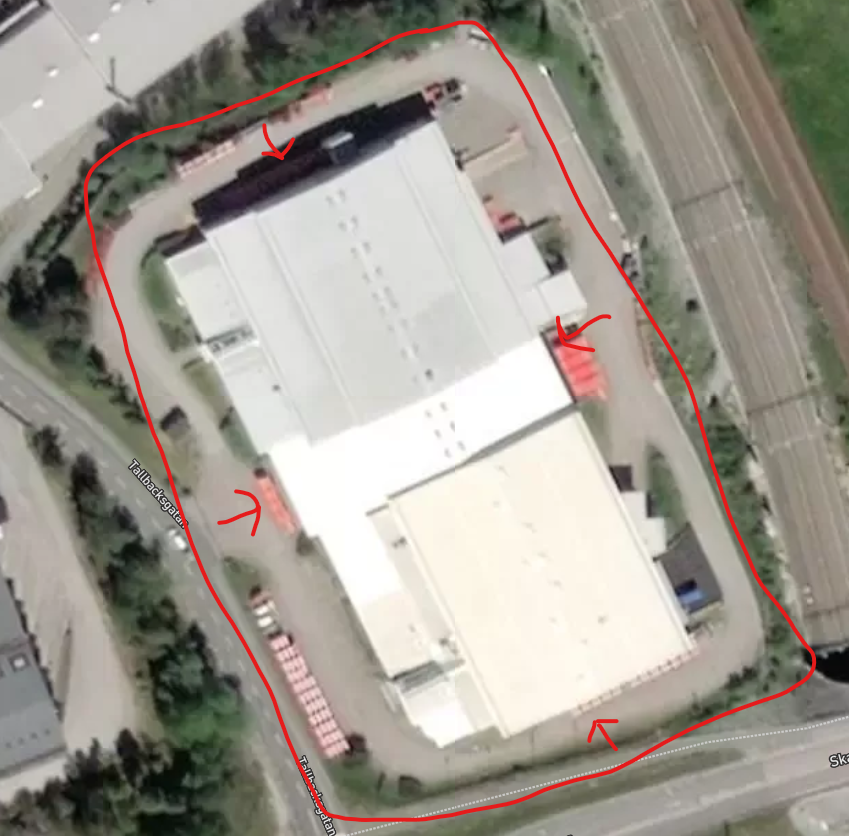

I am planning a regular 3D grid mission over a building. I would also like to have a path that goes around the building to capture angled shots of the wall/roof edge. I want to be from a fixed distance from the roof edge and on a fixed altitude. Then I want to take photos with maybe 75% overlap always focusing the building.

Any tips on how I can plan this?

Comments

1 comment

Barry Houldsworth Dronelink Expert
- April 15, 2023 10:36

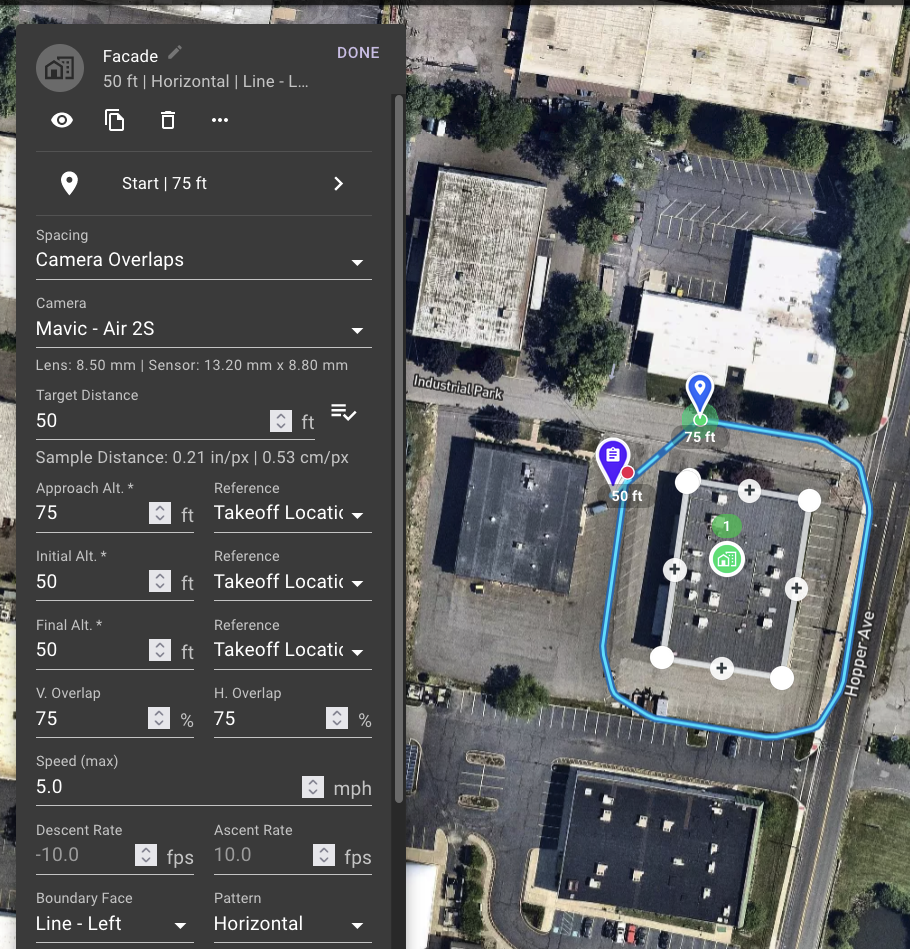

The feature you are looking for is called facade - it can do exactly what you want.

You specify the distance to the target, overlap, and in the advanced section you can specify a gimbal angle if you have a specific need.
