Important Notes:
- Autel EVO II support is unofficial and drone is not actively tested by Dronelink
Learn about the unofficial support for the Autel EVO II Series and the limitations.
A Elite, Starter or Growth plan are required.
Drone Support
Supported: Autel EVO II 8k, Autel EVO Pro 6k
Not Supported: EVO II Dual 640T
Not Tested: EVO II Enterprise, EVO II RTK but may have partial support. RTK menu, or additional payload control will not function, drone may fly autonomous missions successfully however they have not been tested by Dronelink.
Controller Support
Supported: V1 and V2 Remote Controllers
Not Supported: Smart Controller
iOS Mobile App Only
Only the iOS Dronelink Mobile App supports the Autel EVO II.
Android is not supported currently.
Remote Controller Stick Inputs During Autonomous Missions
During autonomous flight, stick inputs on the remote controller are enabled. Attempting to use the sticks during an autonomous mission will result in erratic and unsafe behavior. Pause the autonomous mission before using the RC sticks.
Required Flight Control Settings
The following flight control settings are required for successful autonomous flight.
Set these in the Autel Explorer App.

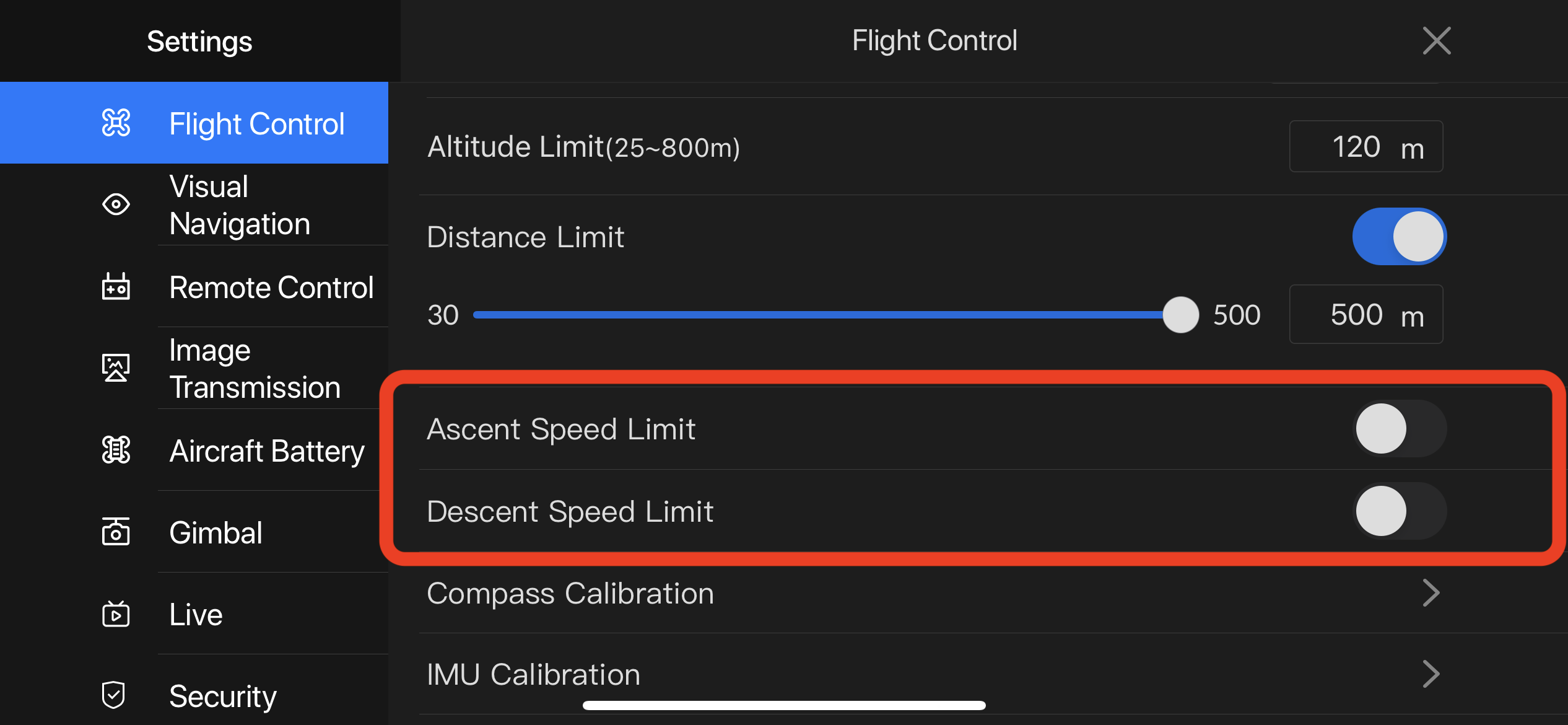

Disable Ascent and Descent Speed Limits
Disable both Ascent and Descent Speed Limits in the Flight Controller Settings

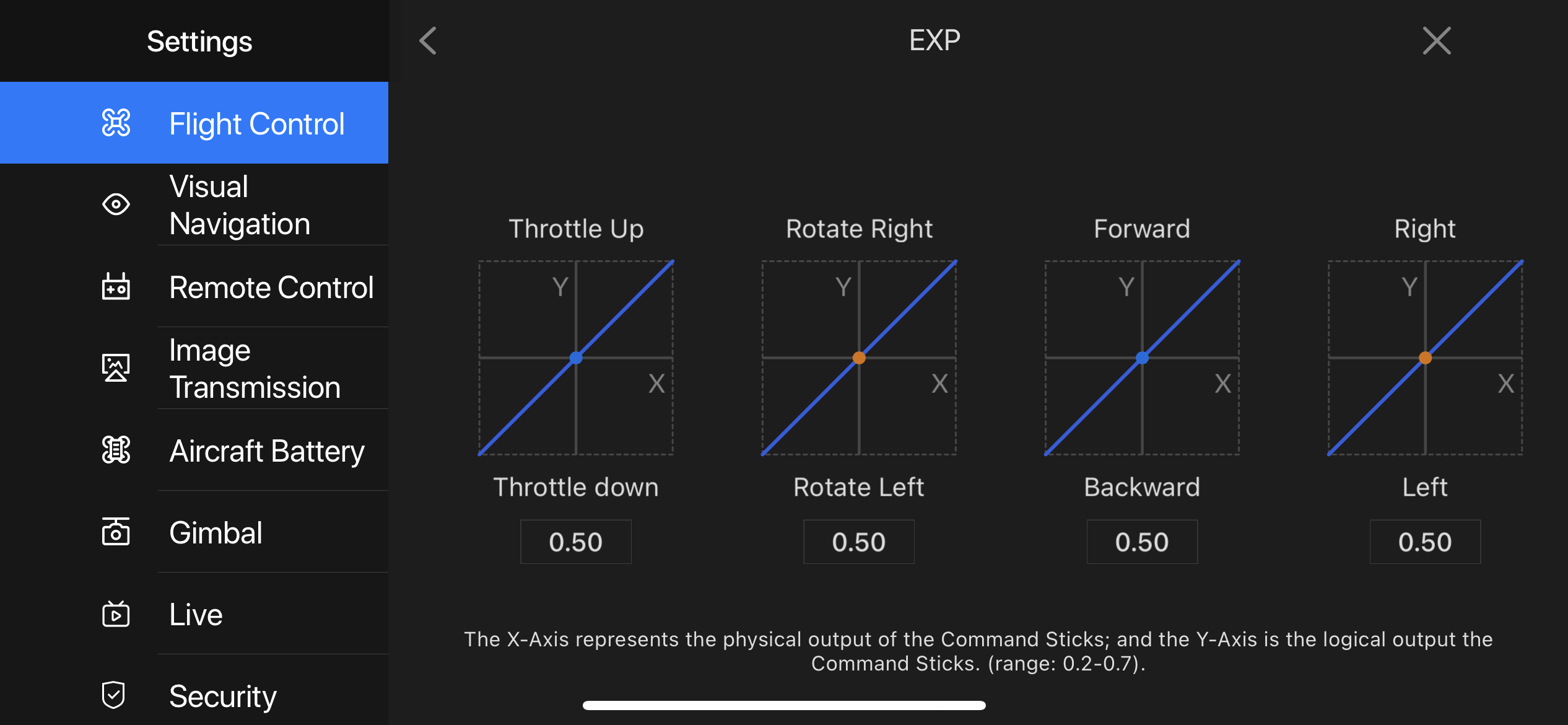

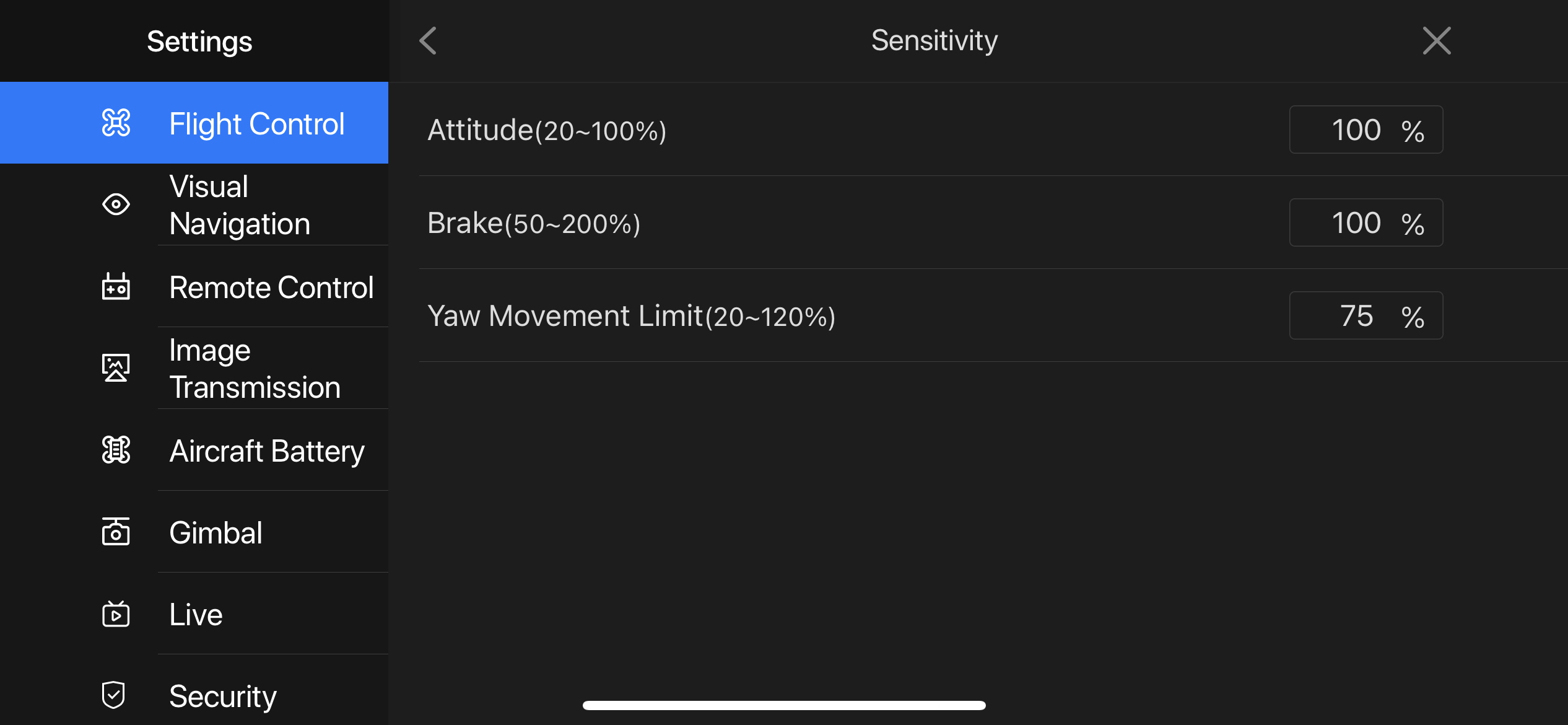

Required EXP and Sensitivity Values
Ensure EXP and Sensitivity values match those in the following screenshots.
Supported Camera Commands / Settings
The following camera and gimbal commands and settings on the flight dashboard are supported.
All other camera and gimbal commands will fail, whether set using the flight dashboard, or using commands within a mission plan.
- Aperture
- AutoLock Gimbal
- Exposure Compensation
- Exposure Mode
- ISO
- Camera Mode
- Photo Interval
- Photo Mode
- Shutter Speed
- Start Capture
- Stop Capture
- Gimbal Mode
- Gimbal Orientation
Supported Drone Commands and Settings
No drone settings are supported at this time; including settings such max flight altitude, or RTH altitude. To change these settings, use the Autel Explorer App.
No Flight Logging Integrations Supported
Flight logging integrations with AirData and DroneLogBook are not supported at this time.
Additional Support Limitations
- Onboard Waypoints Not Supported - Only virtual stick waypoint missions are supported. Uploading waypoints to the drone is not supported.
- White balance is not displayed on the flight dashboard
